Dolphin Pro4 t top is designed for those who often drive on rough water. The extended handle grabs connect to the top frame which also functions as a rear vertical brace standoff; The front vertical brace will attach to the center console at any angle. With both front and rear vertical braces, this t top can sustain driving on any rough water.
Extra wide canopy - 89in Long x 69in Wide.
Height - 86"

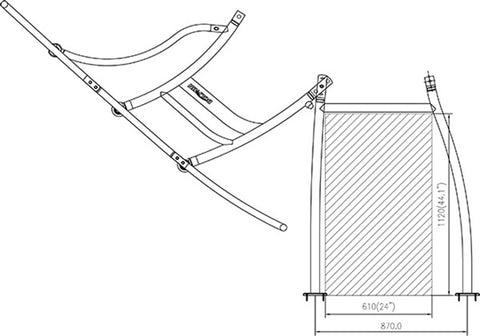

This T Top will clear your center console side hatch / door. The side bar is 41" high to clear all side openings.
Features
Center Console Alloy or fiberglass 18ft to 25ft
Attaches direct to floor and center console.
4 x standoffs lock into console.
Front vertical brace standoff.
Rear Vertical Brace w/ Integrated Hand Bar
Removable cover, zipper and Velcro.
2 inch heavy duty frame
Extended long large grab handle
Quick release for storage.

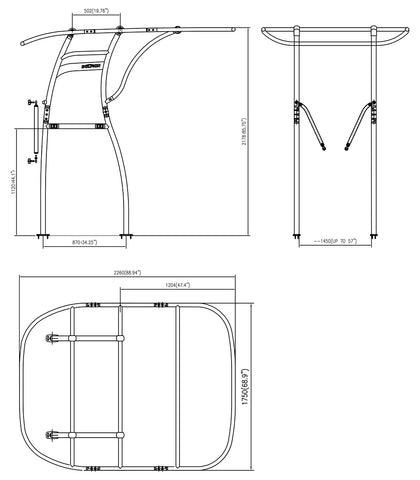

Dimensions
83 inches high
Up to 47 inch wide consoles
82 inches long x 69 inches wide Cover
28 inches front to rear feet center to center.
Lowering the T Top
Front leg loosen the middle bolt.
Remove the top and bottom bolt from the joint
Remove the bolt from the rear leg.
Pivot the T Top forwards.
If needed you can remove bolt from top frame joint
See picture in gallery
Materials
2 inch heavy duty anodised 6063 alloy frame.
CNC Machined 6061 Alloy fitting.
Marine grade VIII, UV resist cover.
Finish
Anodized
Black color Material
